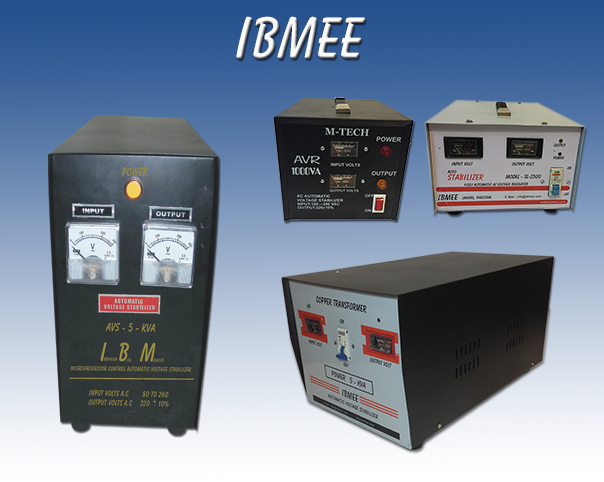

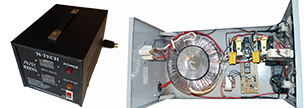

IBMEE Automatic Voltage Stabilizer Relay Controlled
Single Phase
IBMEE AVR Single-phase high accuracy full automatic Relay controlled AC voltage stabilizers
Best AVR in Pakistan, Voltage stablizer for air conditioner, three phase voltage stablizer, stablizer for fridge, automatic voltage stablizer, automatic volatge regulator
General
IBMEE AVR single-phase high accuracy full automatic Relay Controlled AC voltage stablizerApplication
Lighting systems, safety alarm systems, X-ray systems, communication systems ,medical equipment, duplicators, stereo sound equipments, color film developing equipment, digital control machine tools, TV sets, office appliancesTechnical Index
| Input voltage | 70~250V, 110~250V, 150~250V |
| Output voltage | 220V±8% |
| Phase | Single-Phase |
| Frequency | 50~60Hz |
| Debug time | 15V/S |
| Max of | 0.5, 1, 1.5, 2, 3, 5,10, 15, 20, 30KVA |
| Output current | 2, 4, 6.5, 8, 10, 20, 40, 60, 80, 120A |
| Protection over voltage | Optional 245±5V |
| Delay | Optional Short Delay 3~7 sec |
| Ambient temperature | -5~+50 |
| Temperature rise | 70(full load) |
| Relative humidity | < 90% |
| Wave form distortion | No wave-form distortion |
| Efficiency | 95% |
| Voltage withstand | national standard |
| Protections | Phase failure & neutral brake (Under Volt, Over Volt) optional |
Specification & Model
| Spec Model Single-Phase | Unit | Packgae size | Weight(kg) |
|---|---|---|---|
| 500VA | 4 | 22×20.5×16.3 | 6 |
| 1000VA | 4 | 26.5×23.7×18 | 7.5 |
| 2000VA | 2 | 32×29.2×21.8 | 12.5 |
| 3000VA | 2 | 34.5×29×26 | 15 |
| 5000VA | 2 | 54×29.5×30.5 | 25 |
| 10000VA | 1 | 34.5 × 29.5 × 54 | 46 |
| 15000VA | 1 | 36×34×66 | 60 |
| 20000VA | 1 | 49.2×41×87 | 75 |
| 30000VA | 1 | 49.2×41×87 | 90 |

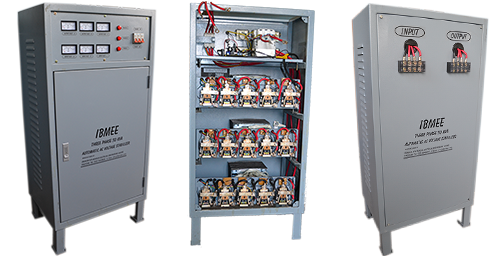

Three Phase

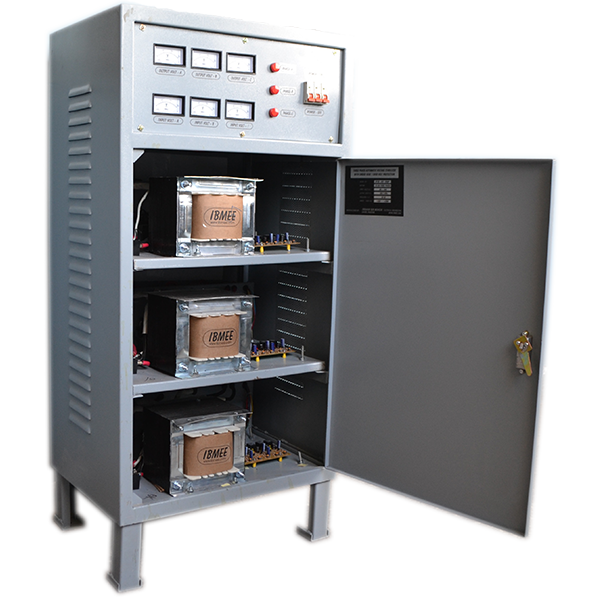

IBMEE Three phase high accuracy full automatic Relay Controlled AC voltage stabilizers
General
IBMEE AVR series three-phase stabilizer is the combination of high-function Single-phase stabilizer. The incoming power of the power network is three-phases four wires system in system, the output power also three-phase four wires with three electric meters to separately indicate three-phase, and shift switch and voltage meters to shifting and surveying each phase.Application
Computers, test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.Technical Index Three Phase
| Input voltage | 120~440V, 200~450V, 280~450V |
| Output voltage | 380V±8% |
| Phase | Three-phase |
| Frequency | 50~60Hz |
| Max of | 1.5, 3, 4.5, 6, 9, 15, 20, 30, 50KV |
| Output current | 2, 4, 6, 8, 12, 20, 28, 40, 68A |
| Delay | short deley5±2 sec |
| Ambient temperature | <70(full load) |
| Temperature rise | -5~+50 |
| Relative humidity | <90% |
| Wave form distortion | No wave-form distortion |
| Efficiency | 95% |
| Voltage withstand | national standard |
| Protections | Phase failure & neutral brake (Under Volt, Over Volt) optional |
